Metalwork

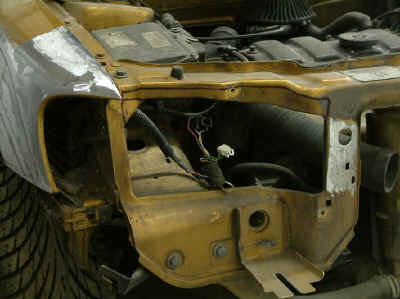

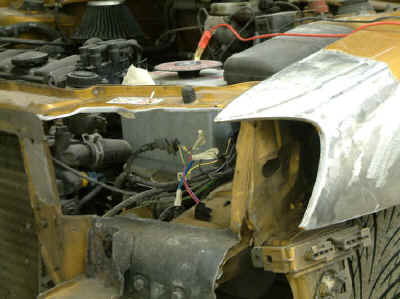

Everything standard Metal in way of new light is cut away

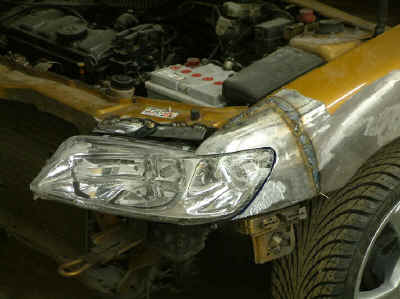

New section let-into wing Andy wanted 306 lights in his 106. Not difficult but not a 5 minute job either - specially when the bonnet has to be modified as well.

Firwt job is to try the lights and work out what's in the way. This is marked above, and then cut out. The light now fits but is too far forward of the wing.

Here we have hand fabricated a section to fit around the light using a hammer and dolly and then welded it in. As always it was seam welded - without too much distortion at all because of the strength of the panel.

Mounts made for the top light fixings - also welded into place. Then try the bonnet.

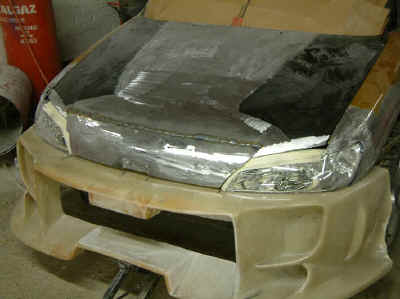

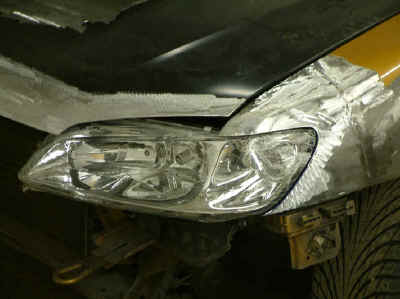

Bonnet doesn't fit - needs building up Piece from second bonnet helps nicely
Other pieces hand fabricated The bonnet does not come down anywhere near the bumper, and does not meet the headlights.

The solution is to use a second bonnet (this is already being done on a new one), cut the front off and weld it onto the front. We could have used a sheet of metal but this very often looks too artificial since it is flat.

The bonnet it double curved and when the conversion was completed looked great. Small piece above the lights was hand fabricated.

People wondered exactly what we had done, but didn't immediately know that the lights were from the wrong car - always a sign that you are on the right path. All work is seam welded using a MIG - spot welds always show through because they flex and the filler cracks.
